Obsidian Two | RTX 5070 Ti 16GB + Ryzen 7 7800X3D | Ready-to-Go Gaming PC | PC36

🖤 Obsidian Two

The one where the case starts earning its keep

Obsidian Two puts a Ryzen 7 7800X3D and an RTX 5070 Ti behind two panes of glass. That is a genuine 1440p ultra machine that will also run 4K properly, in a case that separates everything worth looking at from everything that is not.

The 2500X is a dual chamber design. Motherboard, processor, cooler and graphics card live on the left behind the glass. Power supply, drives and the entire cable loom live on the right behind a mesh panel. It is a better way to build a computer and a slower one, because there is no bad angle to hide a shortcut behind.

Cooling is a 240mm liquid cooler in the roof, three fans we chose ourselves, and a deliberate decision about where not to put fans. All of that is explained below rather than listed.

🧬 Built to last, designed to evolve

This system is built on AMD's latest AM5 platform, which offers one of the best upgrade paths available today. That means you can start with a great processor now and still have room to move up the stack later, while keeping the same motherboard, case, power supply and most of your core components. The 7800X3D here is already close to the top of AM5 for gaming, so the upgrade path is really about the graphics card, and the 850W supply and 400mm of clearance are sized with that in mind.

📃 Specifications

• 🧠 CPU: AMD Ryzen 7 7800X3D
  Click or tap for deeper spec info

  • 8 cores, 16 threads of Zen 4 with 96MB of L3 cache, courtesy of AMD's 3D V-Cache stacked directly onto the compute die
  • The chip that made X3D the default recommendation for gaming. That cache means the processor spends far less time waiting on memory, and it shows up in frame times and 1% lows rather than just benchmark averages
  • Remarkably efficient with it. In games it draws well under 100W while performing like a chip that draws far more, which is why a 240mm cooler is genuinely sufficient here rather than a compromise
  • Worth knowing: the 7800X3D is not overclocked by raising multipliers, because AMD limit voltage on the stacked cache for good reason. It responds instead to a per-core Curve Optimiser undervolt, which is what our optimisation options do
• ❄️ CPU cooler: Thermalright Aqua Elite V6 240mm ARGB liquid cooler
  Click or tap for deeper spec info

  • A 240mm all-in-one liquid cooler with two 120mm ARGB PWM fans, mounted in the roof of the case as exhaust
  • Top mounted, and that is Corsair's own instruction rather than our preference. The 2500X will physically take a radiator in the base, but Corsair specifically advise against it: it causes premature pump wear, worse thermals and more noise, because air collects at the pump instead of the highest point of the loop. We follow that
  • 240mm is comfortably enough for a 7800X3D. This is not a hot chip, it is a fast one, and a larger radiator would buy a couple of degrees you would never see
  • The front of this case is glass, so there is no front radiator position at all. The roof is where an AIO goes in a 2500X, and it works well there
  • Liquid cooling adds real assembly time compared with a tower cooler, particularly in a dual chamber case where the tubing has to be routed without crossing the glass. That work is included in the price rather than added to it
• 🔲 Motherboard: ASRock B850M Pro-A WiFi (micro-ATX)
  Click or tap for deeper spec info

  • 8+2+1 phase Dr.MOS power design. Plain English translation: substantially more power delivery than a 7800X3D asks for. X3D chips are limited by voltage rather than current, so this board is never the constraint
  • PCIe 5.0 x16 for the graphics card, steel reinforced. Worth stating plainly, because Gen5 graphics slots are optional on the B850 chipset and plenty of boards only give you Gen4. This is the real thing, and the metal bracing matters with a card of this weight
  • Three M.2 slots, the first PCIe Gen5 x4 and the other two Gen4 x4, so two stay free for drives you add later
  • Four DDR5 slots supporting up to 256GB, two of them free on this build
  • Wi-Fi 6E, Bluetooth 5.2 and 2.5 Gigabit Ethernet. Wi-Fi 6E adds the 6GHz band, and 2.5G wired is a real step up from the gigabit ports on most boards at this price
  • A BIOS Flashback button on the rear panel, which lets the board be updated with no processor fitted. A builder's feature rather than a buyer's, but part of why we choose this board
  • Realtek ALC897 audio. The standard codec at this tier, and fine for headphones and desk speakers. If you use a DAC or an audio interface it is irrelevant
  • PC36 only uses motherboards chosen for stability and longevity. See our Trusted brands page
• 📏 Memory / RAM: 32GB (2×16GB) DDR5-6000 CL36
  Click or tap for deeper spec info

  • EXPO-tuned dual channel DDR5-6000 CL36, the speed and timing combination Ryzen responds to best on AM5. We fit CL36 as standard rather than the slower CL40 kits often used at this price
  • Two matched sticks in dual channel. On an X3D processor the memory matters a little less than it does on a normal chip, because the cache absorbs much of it, but dual channel is the right call at this tier regardless
  • 32GB is comfortable headroom for gaming, streaming and creative work at once, and two slots stay free if you ever want more
  • Specification guaranteed, model may vary. Happy to confirm the exact part on request
• 💾 Storage: 1TB NVMe PCIe 4.0 SSD (TLC)
  Click or tap for deeper spec info

  • TLC flash rated at 6,500MB/s or better, which holds its speed through long sustained writes rather than dropping off once a cache fills. On a build at this price we do not fit QLC drives
  • Higher write endurance than the entry-tier alternative, which matters if you record gameplay, edit video, or install and uninstall a lot
  • We fit 1TB as standard across the whole range rather than varying it by price, so comparing our machines to each other is straightforward. Two M.2 slots stay free, one of them Gen5, and the rear chamber takes four more drives
  • Specification guaranteed, model may vary. Happy to confirm the exact part on request
• 🎮 Graphics card: NVIDIA RTX 5070 Ti 16GB
  Click or tap for deeper spec info

  • 16GB of GDDR7 on a 256-bit bus. This is the point in NVIDIA's range where 4K stops being an aspiration and becomes something you can just select
  • Very high refresh 1440p at ultra settings, and genuine 4K at high settings in modern AAA titles
  • DLSS 4 with multi frame generation, and the ray tracing hardware to make path traced games playable rather than theoretical. This is where NVIDIA's lead over Radeon is real and worth paying for
  • NVENC for streaming and recording, which is the encoder most streaming software prefers and handles best
  • Around 300W under load, comfortably inside what this case and this power supply handle
  • The case takes cards up to 400mm long, which no 5070 Ti comes close to, so card choice here is genuinely unrestricted
  • The chipset and VRAM are guaranteed: it will always be an RTX 5070 Ti with 16GB. The AIB brand varies with availability, and we only use established manufacturers. See our Trusted brands page for more info
• 🧰 Case: Corsair 2500X, Black
  Click or tap for deeper spec info

  • 376 × 469 × 304mm, roughly 54 litres. Micro-ATX, with four expansion slots
  • Dual chamber. The left side, behind the glass, holds the motherboard, processor, cooler and graphics card. The right side, behind a mesh panel, holds the power supply, the drives and every cable. The two are separated by the motherboard tray
  • Tempered glass on the front and the left side, lightly smoke tinted. Mesh on the right, with a dust filter over the power supply intake
  • Around 100mm of space behind the motherboard tray, which is genuinely exceptional for a case this size and is what makes the cable chamber work
  • Graphics cards up to 400mm, CPU coolers up to 180mm, power supplies up to 225mm. The case ships with an SFX bracket fitted, which we remove to take a full size ATX supply
  • Radiators up to 360mm in the roof and the base, 240mm in the side position, 120mm at the rear. None at the front, because the front is glass
  • Two 3.5 inch and two 2.5 inch drive mounts in the rear chamber
  • It also supports rear-connector motherboards, the kind with the sockets on the back. We do not build with those as standard, but the case is ready for it
• 🌬️ Case cooling: 2 × 120mm ARGB reverse-blade side intake plus 1 × 120mm ARGB rear exhaust, fitted by us, alongside the cooler's 2 × 120mm roof exhaust
  Click or tap for deeper spec info

  • The 2500X ships with no fans at all. Not a reduced set, none. Every fan in this machine is one we have chosen and fitted, and that is a cost we absorb rather than a corner we cut
  • Reverse-blade fans on the intakes, which is worth explaining. A normal fan shows you its frame and its wiring from the front. A reverse-blade fan is built the other way round, so the blade face is what you see through the glass. With two glass panels that is the difference between looking finished and looking assembled
  • Two intakes in the side position, one exhaust at the rear, and the radiator exhausting through the roof. Cool air enters alongside the graphics card, and heat leaves upward and backward
  • The bottom mounts are left empty on purpose. Fans will physically fit down there, but in this chassis they sit so close to the underside of the graphics card that they have very little room to breathe and contribute much less than the mount count suggests. We would rather fit fans where they work than where they look busy. If you specifically want them, slim fans are the answer and we can do it, see the upgrade options
  • Worth knowing what fans are actually worth here: independent testing of this case found that adding fans was worth around 7°C on processor temperatures, while removing the glass panels entirely was worth about 1°C. The glass is not what limits this case
  • Fan curves are set by hand before dispatch and verified through our standard stress testing rather than assumed
• ⚡ Power supply: Corsair RM850e 850W 80+ Gold, fully modular
  Click or tap for deeper spec info

  • 850W with a 300W graphics card and a sub-100W processor means the unit spends its life in the quiet, efficient middle of its range rather than working near the top of it
  • Fully modular, so only the cables this build uses are installed. In a dual chamber case that is worth having: everything not fitted is one less thing to fold into the rear chamber
  • ATX 3.1 with a native 12V-2x6 connector, so the card plugs straight in with no adaptor. All PC36 power supplies of 750W and above are ATX 3.1 certified
  • The headroom is deliberate. This unit will run an RTX 5080 without being replaced, so a card upgrade later is a straight swap
  • Corsair back it with a long manufacturer warranty, and it is a quiet unit at the loads this build produces
• 🔌 Cabling: Black cabling, routed into the rear chamber
  Click or tap for deeper spec info

  • Black cables throughout, routed through the tray's grommets into the right-hand chamber and tied down there, so the glass side shows components and nothing else
  • This case rewards doing that properly and punishes not bothering. Two glass panels means there is no bad angle to hide behind, and it is where a good share of the assembly time on this build goes
  • Braided cable extensions in a colour of your choice are available. See the upgrade options below
• 📶 WiFi / Bluetooth / Ethernet: Wi-Fi 6E, Bluetooth 5.2 and 2.5 Gigabit Ethernet, included
  Click or tap for deeper spec info

  • Built into the ASRock B850M Pro-A WiFi. No separate adapter needed, and the aerial is supplied in the box
  • Wi-Fi 6E adds the 6GHz band, which is usually far less congested than 2.4 and 5GHz if your router supports it
  • 2.5 Gigabit wired Ethernet, which we would still recommend over wireless for competitive play
• 🪟 Operating system: As chosen by you from the listing options below. Windows 11 Home (OEM) is recommended.
• 🧹 Setup and optimisation: PC36 High-Class Standard. Full stress test with certificate, bloat-free installation, and BIOS set up properly
  Click or tap for deeper spec info

  PC36 High-Class Standard, included free with every build

  • Ready the moment you open the box. Your PC boots straight into Windows with a local account already set up. No account sign-in wall, no first-run questionnaire, no half-hour of setup before you can use the machine you just bought
  • BIOS updated and configured properly: manual fan curves, PBO enabled, EXPO enabled, Secure Boot enabled
  • Vanilla Windows 11 installation if you choose Windows, with no bloatware added by us, and all drivers loaded and ready to go
  • Full stress test with certificate. Every system is torture tested on CPU, RAM and GPU before dispatch, and ships with the certificate to prove it

  PC36 Premier Optimisation, available in the listing options

  • CPU tuning to bring thermals and noise down with minimal performance loss, plus a deeper strip and debloat of Windows and a hand-tuned fan and pump profile
  • Worth taking on this build. The 7800X3D responds very well to a per-core Curve Optimiser undervolt, and on a liquid cooled machine the pump curve matters as much as the fans. Left at defaults, most AIOs run the pump far harder than they need to

  PC36 Ultimate Performance Tune, available in the listing options

  • Advanced overclocking: memory tune, CPU tune and GPU overclock on top of everything in Premier
  • Being straight about the ceiling. The 7800X3D cannot be overclocked by multiplier, so the CPU portion here is an undervolt rather than a clock increase. The real gain is on the graphics card, where a 5070 Ti has genuine headroom and this case has the airflow to support it. Worth it if you want the last few percent, but Premier gets you most of the benefit for a fraction of the cost
• 🛡️ Warranty: 3 years parts & labour (return to base)
  Click or tap for deeper spec info

  • Standard 3-year coverage included, parts and labour both
  • Optional extended warranties in the listing options below

👁️ Transparency notes

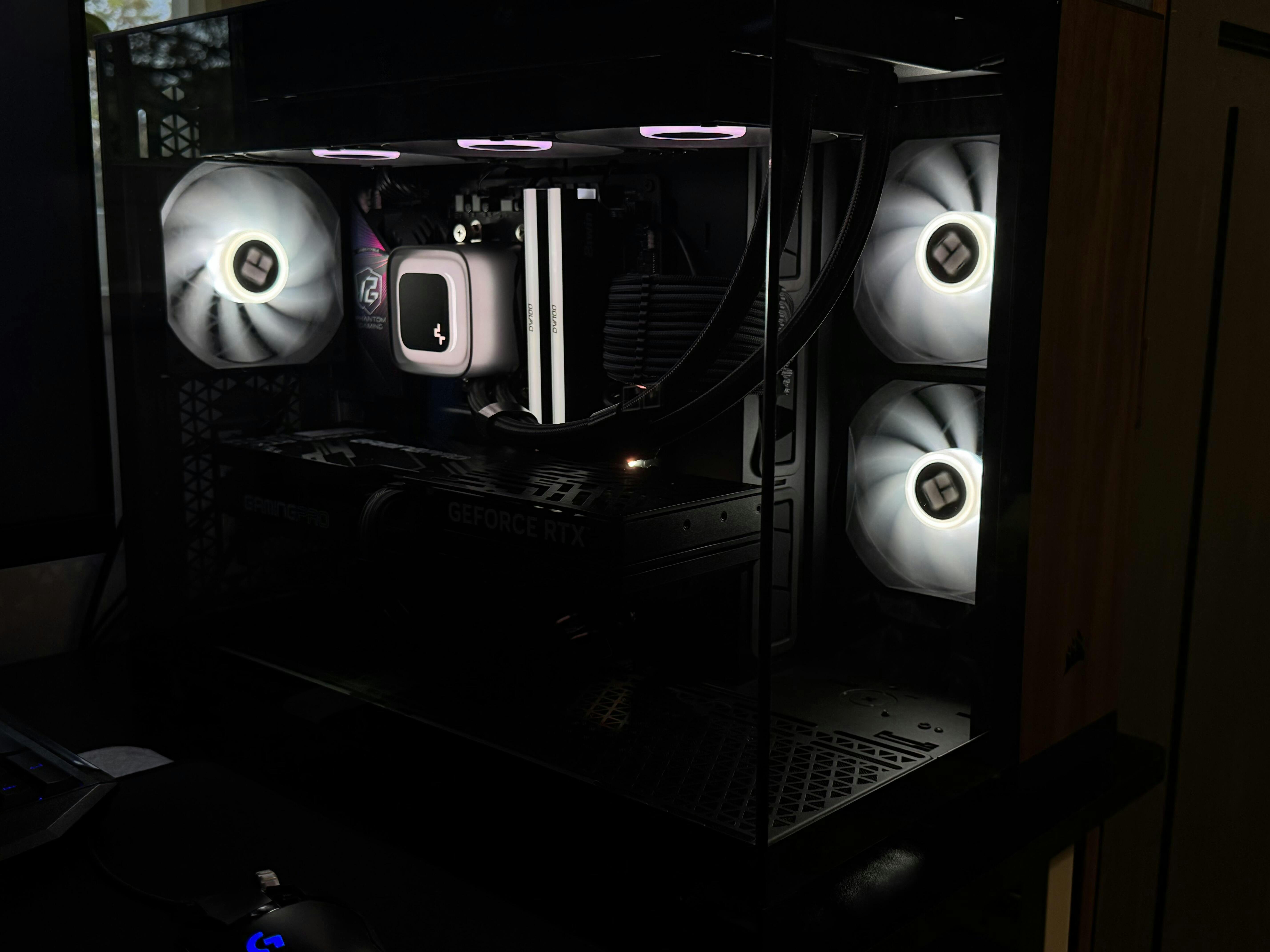

• Our photographs show the walnut version of this case, but every build now uses the plain black one, which is otherwise identical (click or tap to read more)

  Corsair sell the 2500X with an optional walnut front and roof, and that is what is in our gallery. It is no longer something we can source reliably, so every Obsidian we build now uses the standard black case, which is otherwise identical in every dimension and every feature. We are photographing a black build and the images will be replaced. Until then, look at the black case rather than the wood when you picture yours. If the woodgrain is specifically what you wanted, talk to us on live chat before you order and we will tell you honestly whether we can get one.

• Some older photographs show a 360mm cooler, but this build ships with a 240mm, which is right for this processor (click or tap to read more)

  A 240mm is sufficient for a 7800X3D and it is what we fit. If you would prefer the 360mm, ask us on live chat.

• The glass is smoke tinted, which looks superb in a lit room and dims the interior in a dark one (click or tap to read more)

  Worth knowing before you order if you want the lighting to read strongly at night, because a tinted panel dims what is behind it.

• Product images are representative photos of a similar spec in the same style. Your PC will look similar but not identical. Our support team can help clarify anything you're unsure of.

🛠️ Popular upgrade options

• Storage upgrade to 2TB: available in the listing options below.
  Click or tap for more info

  The upgrade we would recommend first at this tier. Modern AAA installs regularly run past 150GB each, and if you capture gameplay a 1TB drive fills faster than you expect. You can defer it, since two M.2 slots stay free, but it is cheaper taken now than added later.

• Braided cable extensions: available in the listing options below.
  Click or tap for more info

  This is the range where cable extensions earn their money. Two glass panels means the cabling between the shroud and the motherboard is genuinely on show, and sleeved extensions change how the whole build reads. Purely cosmetic, but of all our cases this is the one where it shows most.

• Three slim 120mm intake fans in the base: available via live chat.
  Click or tap for more info

  We leave the bottom mounts empty as standard because standard-depth fans there sit very close to the underside of the graphics card and achieve less than the mount count implies. Slim fans change that arithmetic: they give the card meaningfully more room to breathe and they do add cool air directly where the heat is. Worth considering if you plan to overclock the card, if the machine will live somewhere warm, or simply if you like the look of a full set through the glass. Ask us on live chat and we will price it and tell you honestly what it will and will not gain you.

• Memory upgrade to 48GB or 64GB: available in the listing options below.
  Click or tap for more info

  Worth it if you edit video, run virtual machines or work with large 3D scenes. For gaming, including heavily modded gaming, 32GB is not the limit here. Two slots stay free either way, so this is genuinely a decision you can defer.

• Graphics card upgrade to RTX 5080: available via live chat.
  Click or tap for more info

  A real step up at 4K, and the 850W supply and 400mm of clearance mean it needs no other changes. Worth comparing against Obsidian Three on live chat first, since that build pairs a much faster card with a 9800X3D, a 360mm cooler and a 1000W supply rather than putting a bigger card into this configuration.

• Extended warranty: available in the listing options below.
• Anything else: speak with us via live chat. Different fan colours, a white case, a 360mm cooler, a specific card model. We build these to order, so most things are possible if you ask before you buy.

🎯 What is this PC best for?

• 1440p at ultra settings and very high refresh rates
• 4K at high settings in modern AAA titles
• Ray tracing and path tracing with DLSS 4 multi frame generation
• Streaming and recording with NVENC while playing
• Anyone who wants the machine on the desk rather than under it
• Buyers who care about how a build looks inside as much as what it scores

📊 Performance estimates

Figures are given at both 1440p and 4K. Performance varies with game updates, maps, settings and background apps. These are estimates, not guarantees.

Fortnite - Competitive Settings (click or tap to expand)

1440p: 320-400 FPS
4K: 185-235 FPS
Native testing (no upscaling or frame generation).

Cyberpunk 2077 - Ray Tracing Medium (click or tap to expand)

1440p: 115-145 FPS
4K: 70-90 FPS
Upscaling set to Auto (DLSS / FSR / XeSS based on GPU).

Battlefield 6 - High Settings (click or tap to expand)

1440p: 145-180 FPS
4K: 85-110 FPS
Native testing (no upscaling or frame generation).

DaVinci Resolve - PugetBench Standard (click or tap to expand)

Estimated score: 8,000-9,000

💬 Need help?

Not sure if this is the right spec for you? Ping us on live chat and we'll help you choose the perfect PC for your games, work and budget. You'll be talking to one of us, not a chatbot.
