Obsidian One | RX 9060 XT 16GB + Ryzen 5 7500F | Ready-to-Go Gaming PC | PC36

💎 Obsidian One

Two panes of glass and nothing to hide behind them

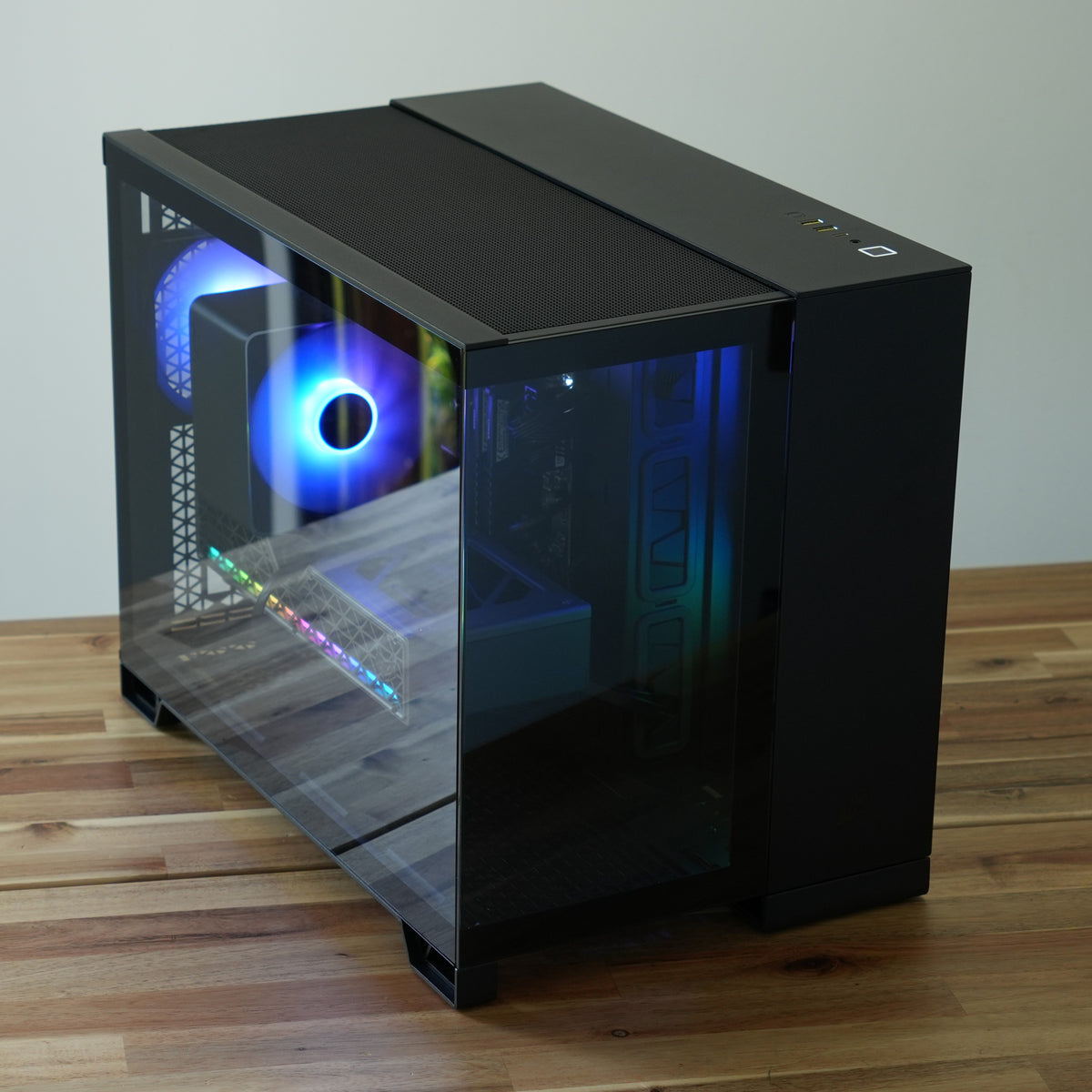

Obsidian One is built in the Corsair 2500X, a dual chamber case with tempered glass across the front and down one side. Everything you are meant to see sits in the left chamber. Everything you are not, the power supply, the drives and the whole cable loom, lives behind the motherboard tray in the right chamber where nobody has to look at it.

That layout is the reason this case is worth building in. It is also the reason it takes longer to build in, because there is nowhere to hide a lazy cable run.

Inside it is a sensible 1440p machine: a Ryzen 5 7500F and a Radeon RX 9060 XT with 16GB of memory, on a board with a full PCIe 5.0 slot and room for two more drives.

🧬 Built to last, designed to evolve

This system is built on AMD's latest AM5 platform, which offers one of the best upgrade paths available today. That means you can start with a great processor now and still have room to move up the stack later, while keeping the same motherboard, case, power supply and most of your core components. The case takes graphics cards up to 400mm and the power supply is deliberately larger than this build needs, so the obvious upgrade in a couple of years is a straight swap rather than a rebuild.

📃 Specifications

• 🧠 CPU: AMD Ryzen 5 7500F
  Click or tap for deeper spec info

  • 6 cores, 12 threads of Zen 4, boosting to 5.0GHz, with 32MB of L3 cache
  • The 7500F is the 7600 without the integrated graphics, and because you are fitting a graphics card anyway, that omission costs you nothing and saves real money. It is the most sensible processor in the AM5 range at this price
  • 65W TDP, so it runs cool and quiet and does not need an expensive cooler to behave itself
  • At 1440p with this class of graphics card, the card is what sets your frame rate, not the processor. Spending more here would not show up on screen
  • AM5 is a live socket. When you do want more processor, a 7800X3D or a 9800X3D drops straight in without touching anything else
• ❄️ CPU cooler: ID-Cooling SE 214 XT ARGB
  Click or tap for deeper spec info

  • A four heatpipe tower cooler with a 120mm PWM fan. More than enough for a 65W processor, and quiet doing it
  • We fit the ARGB version on this build rather than the plain black one. It costs us the same and this is a case with glass on two sides, so the lighting is part of what you are paying for
  • Mounted with Arctic MX-4 paste, applied by hand rather than using the pre-applied pad coolers ship with
  • The 2500X takes coolers up to 180mm tall, which is unusually generous for a micro-ATX case, so there is a great deal of room here if you upgrade the processor later
• 🔲 Motherboard: ASRock B850M Pro-A WiFi (micro-ATX)
  Click or tap for deeper spec info

  • 8+2+1 phase Dr.MOS power design. Plain English translation: comfortably more power delivery than a 65W processor will ever ask for, and enough for a 9800X3D if you upgrade later
  • PCIe 5.0 x16 for the graphics card, steel reinforced. Worth saying clearly, because Gen5 graphics slots are optional on the B850 chipset and plenty of boards at this price only give you Gen4. This one is the real thing, and the metal bracing matters when a heavy card is hanging off it
  • Three M.2 slots, the first PCIe Gen5 x4 and the other two Gen4 x4, so two stay free for drives you add later
  • Four DDR5 slots supporting up to 256GB, with three free on this build
  • Wi-Fi 6E, Bluetooth 5.2 and 2.5 Gigabit Ethernet. The 6E part means the 6GHz band, and 2.5G wired is a genuine step up from the gigabit ports found on most boards at this price
  • A BIOS Flashback button on the rear panel, which lets the board be updated with no processor fitted. That is a builder's feature rather than a buyer's, but it is part of why we choose this board
  • Realtek ALC897 audio. This is the standard codec at this tier and it is fine for headphones and desk speakers. If you use a dedicated DAC or an audio interface it is irrelevant, and if you do not, you will not notice
  • PC36 only uses motherboards chosen for stability and longevity. See our Trusted brands page
• 📏 Memory / RAM: 16GB (1×16GB) DDR5-6000 CL36
  Click or tap for deeper spec info

  • EXPO-tuned DDR5-6000 CL36, the speed and timing combination Ryzen responds to best on AM5. We fit CL36 rather than the slower CL40 kits often used at this price
  • One stick rather than two, and that is a deliberate choice worth understanding. A single module runs in single channel, which costs a few percent in some games. What you get in exchange is three empty slots and a genuine upgrade path: add a matching 16GB stick later and you have 32GB in dual channel, for the price of one stick. Buy a 2x8GB kit instead and you throw the whole thing away to upgrade
  • DDR5 pricing is currently the most volatile thing in a build like this. Fitting one stick is how we keep this machine at this price without cutting the graphics card, which is the part you would actually notice
  • 16GB is enough for every current game at 1440p. If you stream, keep a lot open alongside a game, or do creative work, take the 32GB option below and skip the two-step
  • Specification guaranteed, model may vary. Happy to confirm the exact part on request
• 💾 Storage: 1TB NVMe PCIe 4.0 SSD
  Click or tap for deeper spec info

  • Rated at 5,000MB/s or better. Games load in seconds and Windows feels instant
  • This is a QLC drive, which is the honest tier for this price. It is quick for everything you will do day to day, and it slows down only during very long sustained writes such as moving hundreds of gigabytes in one go. For gaming and normal use you would not notice the difference
  • Two further M.2 slots sit free, one of them Gen5, plus room in the rear chamber for two 2.5 inch and two 3.5 inch drives. Adding storage later is easy and cheap
  • We fit 1TB as standard across the whole range rather than varying it by price, so comparing our machines to each other is straightforward. The 2TB option is below if you want it
  • Specification guaranteed, model may vary. Happy to confirm the exact part on request
• 🎮 Graphics card: AMD Radeon RX 9060 XT 16GB
  Click or tap for deeper spec info

  • RDNA 4 with 16GB of GDDR6. The memory is the headline here: 16GB at this price is unusual, and it is what stops the card running out of room in texture-heavy games at 1440p while cards with 8GB start stuttering
  • Comfortable 1440p at high settings in modern titles, and very high frame rates in competitive games at 1080p or 1440p
  • Supports FSR 4, AMD's machine-learning upscaler, which is a real step up from FSR 3 and is limited to RDNA 4 cards like this one. It is the reason a card at this price still has life in it in two years
  • AV1 encoding for streaming and recording at a much better quality-to-bitrate ratio than older codecs
  • Being straight about ray tracing: Radeon cards are still behind NVIDIA here, and this one is no exception. Ray traced games are playable at 1440p with upscaling on, but if heavy ray tracing is your priority rather than raw frame rate, say so on live chat and we will point you at an NVIDIA build instead
  • The chipset and VRAM are guaranteed: it will always be an RX 9060 XT with 16GB. The AIB brand varies with availability, and we only use established manufacturers. See our Trusted brands page for more info
• 🧰 Case: Corsair 2500X, Black
  Click or tap for deeper spec info

  • 376 × 469 × 304mm, roughly 54 litres. Micro-ATX, with four expansion slots
  • Dual chamber. The left side, behind the glass, holds the motherboard, processor, cooler and graphics card. The right side, behind a mesh panel, holds the power supply, the drives and every cable. The two are separated by the motherboard tray
  • Tempered glass on the front and the left side, lightly smoke tinted. Mesh on the right, with a dust filter over the power supply intake
  • Around 100mm of space behind the motherboard tray, which is genuinely exceptional for a case this size and is the whole reason the cable side works
  • Graphics cards up to 400mm, CPU coolers up to 180mm, power supplies up to 225mm. Nothing in this build comes close to any of those, which is why it upgrades so easily
  • Front I/O is USB-C, two USB-A at 5Gbps, and a combined headphone and microphone jack. There is an honest note about the USB-C speed in the transparency section below
  • Two 3.5 inch and two 2.5 inch drive mounts in the rear chamber
  • It also supports rear-connector motherboards, the kind with the sockets on the back. We do not build with those as standard, but the case is ready for it if you ever want one
• 🌬️ Case cooling: 2 × 120mm ARGB reverse-blade side intake plus 1 × 120mm ARGB rear exhaust, all fitted by us
  Click or tap for deeper spec info

  • The 2500X ships with no fans at all. Not a reduced set, none. Every fan in this machine is one we have chosen and fitted, and that is a cost we absorb rather than a corner we cut
  • Reverse-blade fans on the intakes, which is a detail worth explaining. A normal fan shows you its frame and its wiring from the front. A reverse-blade fan is built the other way round so the blade face is what you see through the glass. In a case with two glass panels that is the difference between looking finished and looking assembled
  • Two intakes in the side position and one exhaust at the rear. Air comes in alongside the graphics card and leaves past the processor cooler
  • The bottom mounts are left empty on purpose. Fans will physically fit down there, but in this chassis they sit so close to the underside of the graphics card that they have very little room to breathe and contribute much less than the mount count suggests. We would rather fit three fans where they work than five where two of them are decoration
  • Worth knowing what fans are actually worth here: independent testing of this case found that adding fans was worth around 7°C on processor temperatures, while removing the glass panels entirely was worth about 1°C. The glass is not what limits this case. Empty fan mounts are, and this one does not have any that matter
  • Fan curves are set by hand before dispatch and verified through our standard stress testing rather than assumed
• ⚡ Power supply: Deepcool PL750D 750W 80+ Bronze, ATX 3.1 certified
  Click or tap for deeper spec info

  • 750W is far more than this build draws. That is intentional. A 7500F and a 9060 XT together pull well under 300W in normal use, so the supply spends its whole life in the quiet, efficient middle of its range rather than working hard
  • The real reason for the headroom is upgrades. This unit will run an RTX 5070, an RX 9070 or an RX 9070 XT without being replaced, so a graphics card upgrade in two years is a fifteen minute job
  • ATX 3.1 certified, which means it is built to handle the sudden power spikes modern graphics cards produce without shutting the machine down. All PC36 power supplies of 750W and above are ATX 3.1 certified
  • This is a fixed cable unit, and this case is the reason it works. On most dual chamber cases we would insist on a modular supply, because the spare cables end up in the same compartment you are trying to keep tidy. The 2500X's rear chamber is unusually deep, with about 100mm behind the tray, so there is genuine room to fold the excess away where the glass never sees it
  • Deepcool back it with a 10 year warranty
• 🔌 Cabling: Black cabling, routed into the rear chamber
  Click or tap for deeper spec info

  • Black cables throughout. Everything is routed through the tray's grommets into the right-hand chamber and tied down there, so the glass side shows the components and nothing else
  • This case rewards doing that properly and punishes not bothering, because two glass panels means there is no bad angle to hide behind. It is where a good share of the assembly time on this build goes
  • Braided cable extensions in a colour of your choice are available. See the upgrade options below
• 📶 WiFi / Bluetooth / Ethernet: Wi-Fi 6E, Bluetooth 5.2 and 2.5 Gigabit Ethernet, included
  Click or tap for deeper spec info

  • Built into the ASRock B850M Pro-A WiFi. No separate adapter needed, and the aerial is supplied in the box
  • Wi-Fi 6E adds the 6GHz band, which is usually far less congested than 2.4 and 5GHz if your router supports it
  • 2.5 Gigabit wired Ethernet, which is faster than the gigabit ports fitted to most boards at this price and worth having if you move large files around a home network
  • One honest detail about the front panel: the case's USB-C port is wired for 10Gbps, but the motherboard header it connects to runs at 5Gbps, so that is the speed you get. The board's rear USB-C is the full 10Gbps. Nobody publishes this and most people never notice, but if you plug fast external drives into the front port it is worth knowing
• 🪟 Operating system: As chosen by you from the listing options below. Windows 11 Home (OEM) is recommended.
• 🧹 Setup and optimisation: PC36 High-Class Standard. Full stress test with certificate, bloat-free installation, and BIOS set up properly
  Click or tap for deeper spec info

  PC36 High-Class Standard, included free with every build

  • Ready the moment you open the box. Your PC boots straight into Windows with a local account already set up. No account sign-in wall, no first-run questionnaire, no half-hour of setup before you can use the machine you just bought
  • BIOS updated and configured properly: manual fan curves, PBO enabled, EXPO enabled, Secure Boot enabled
  • Vanilla Windows 11 installation if you choose Windows, with no bloatware added by us, and all drivers loaded and ready to go
  • Full stress test with certificate. Every system is torture tested on CPU, RAM and GPU before dispatch, and ships with the certificate to prove it

  PC36 Premier Optimisation, available in the listing options

  • CPU tuning to bring thermals and noise down with minimal performance loss, plus a deeper strip and debloat of Windows and a hand-tuned fan profile
  • On this build it is a nice-to-have rather than a necessity. The 7500F is already a cool, quiet chip and this case moves plenty of air. It will make an already quiet PC quieter

  PC36 Ultimate Performance Tune, available in the listing options

  • Advanced overclocking: memory tune, CPU tune and GPU overclock on top of everything in Premier
  • Honestly, this is not the machine for it. At 1440p this build is limited by the graphics card, and a processor overclock will not change your frame rate. If you want more performance from Obsidian One, the money is better spent on the graphics card or on Obsidian Two
• 🛡️ Warranty: 3 years parts & labour (return to base)
  Click or tap for deeper spec info

  • Standard 3-year coverage included, parts and labour both
  • Optional extended warranties in the listing options below

👁️ Transparency notes

• The photographs show the woodgrain version of this case. The build is now the plain black one. Corsair sell the 2500X with an optional walnut front and roof, and that is what is in our gallery. It is no longer something we can source reliably, so every Obsidian we build now uses the standard black case, which is otherwise identical in every dimension and every feature. We are photographing a black build and the images will be replaced. Until then, look at the black case rather than the wood when you picture yours. If the woodgrain is specifically what you wanted, talk to us on live chat before you order and we will tell you honestly whether we can get one.
• The case comes with no fans, so all three are ours. Mentioned because the fan count is part of what you are buying here and it is not a Corsair figure. Two reverse-blade intakes in the side position and one exhaust at the rear.
• One memory stick, not two. This build ships with a single 16GB module, which runs in single channel and costs a few percent in some games against a matched pair. In exchange you get three free slots, so adding a second 16GB stick later gives 32GB in dual channel without discarding anything. If you would rather have 32GB from the start, take the option below.
• Ray tracing is the weak spot of this graphics card. Radeon has closed a lot of ground with RDNA 4 but NVIDIA is still ahead on ray tracing specifically. Ray traced games are playable at 1440p with FSR 4 enabled. If ray tracing is the reason you are buying, tell us and we will point you at something better suited.
• The front USB-C port runs at 5Gbps, not 10. The case is wired for 10, but the motherboard's front panel header is 5Gbps, which is true of essentially every micro-ATX board at this price. The rear USB-C is the full 10Gbps. Only relevant if you use fast external storage on the front port.
• The glass is smoke tinted. It looks superb in a lit room and it dims the interior in a dark one. If you want the lighting to read strongly at night, that is worth knowing before you order.
• Product images are representative photos of a similar spec in the same style. Your PC will look similar but not identical. Our support team can help clarify anything you're unsure of.

🛠️ Popular upgrade options

• Memory upgrade to 32GB (2×16GB) dual channel: available in the listing options below.
  Click or tap for more info

  The upgrade we would recommend first on this listing. It gets you dual channel memory as well as the extra capacity, so it is worth slightly more than the capacity alone suggests. Take it now if you stream, edit, or keep a lot open alongside a game. If you only play games at 1440p, 16GB is genuinely fine and you can add the second stick whenever you like.

• Storage upgrade to 2TB: available in the listing options below.
  Click or tap for more info

  Worth it if you keep more than about eight large games installed at once. Less urgent than on our higher builds, because two M.2 slots stay free and the rear chamber takes four more drives, so adding storage later is cheap and easy.

• Braided cable extensions: available in the listing options below.
  Click or tap for more info

  This is the listing where cable extensions earn their money. Two glass panels means the cabling between the power supply shroud and the motherboard is genuinely on show, and sleeved extensions change how the whole build reads. Purely cosmetic, but of all our cases this is the one where it shows most.

• Three slim 120mm intake fans in the base: available via live chat.
  Click or tap for more info

  We leave the bottom mounts empty as standard because standard-depth fans there sit very close to the underside of the graphics card and achieve less than the mount count implies. Slim fans change that arithmetic and give the card more room to breathe. On this tier the thermal gain is small, since a 9060 XT is not a hot card, so take it if you like the look of a full set through the glass rather than because the machine needs it. Ask us on live chat and we will price it.

• Graphics card upgrade: available via live chat.
  Click or tap for more info

  The 750W supply and 400mm of card clearance mean almost anything will go in without further changes. An RX 9070 GRE or an RTX 5070 is the natural next step. Talk to us and we will price it against simply buying Obsidian Two, which is often the better answer.

• CPU upgrade to Ryzen 7 7800X3D: available via live chat.
  Click or tap for more info

  Worth it only if you play CPU-limited games at high refresh rates, such as competitive shooters at 1080p or heavily modded simulation games. At 1440p with this graphics card you would not see the difference. If you want more performance from this machine, spend the money on the graphics card first.

• Extended warranty: available in the listing options below.
• Anything else: speak with us via live chat. Different fan colours, a white case, a bigger cooler, a specific card model. We build these to order, so most things are possible if you ask before you buy.

🎯 What is this PC best for?

• 1440p gaming at high settings in modern titles
• High frame rate competitive gaming at 1080p and 1440p
• Streaming and recording, using the card's AV1 encoder
• Anyone who wants the machine to be part of the desk rather than hidden under it
• Buyers who care about how a build looks inside as well as what it scores
• A sensible starting point on a platform and in a case that both upgrade cleanly for years

📊 Performance estimates

Figures are 1440p. Performance varies with game updates, maps, settings and background apps. These are estimates, not guarantees.

Fortnite - Competitive Settings (click or tap to expand)

1440p: 220-280 FPS
Native testing (no upscaling or frame generation).

Cyberpunk 2077 - Ray Tracing Medium (click or tap to expand)

1440p: 60-75 FPS
Upscaling set to Auto (DLSS / FSR / XeSS based on GPU).

Battlefield 6 - High Settings (click or tap to expand)

1440p: 100-130 FPS
Native testing (no upscaling or frame generation).

DaVinci Resolve - PugetBench Standard (click or tap to expand)

Estimated score: 5,000

💬 Need help?

Not sure if this is the right spec for you? Ping us on live chat and we'll help you choose the perfect PC for your games, work and budget. You'll be talking to one of us, not a chatbot.
